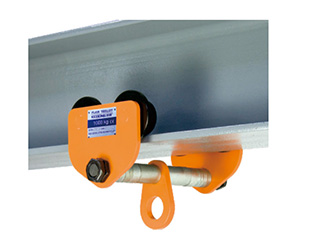

TG610 TYPE GEARED TROLLEY

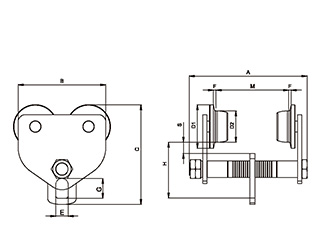

Model	Capacity (tons)	Min. Curve Radius (m)	Beam Flange Width(mm)		Dimensions(mm)											Net Weight(kg)
			M		A		B	C	D1	D2	F	E	G	H	S	Net Weight(kg)
			a	b	a	b	B	C	D1	D2	F	E	G	H	S	a	b
TP610-0.5	0.5	0.8	64-152	82-203	235	285	148	175	Φ84	Φ60	1.5-3	23	37	95	25	4.5	4.8
TP610-1	1.0	0.9	64-203	102-305	295	395	160	191	Φ84	Φ60		24	38	107	21	6.4	7.1
TP610-2	2.0	1.0	88-203	102-305	310	410	174	233	Φ102	Φ75		29	45	128	29	11.8	12. 8
TP610-3	3.0	1.2	102-203	102-305	325	425	210	282	Φ120	Φ90		36	65	153	22	18. 9	20.2
TP610-5	5.0	1.3	114-203	108-305	335	435	250	343	Φ141	Φ110		45	75	218	31	30. 4	32. 2
