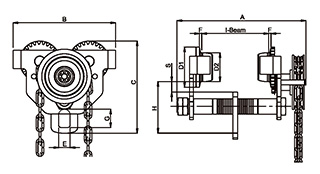

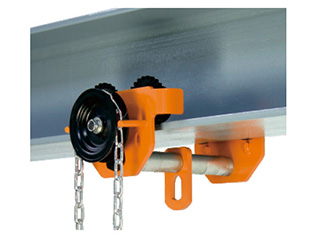

TG TYPE GEARED TROLLEY

Model	Capacity (tons)	Min. Curve Radius (m)	Beam Flange Width(mm)		Dimensions(mm)											Net Weight (Kg)
			M		A		B	C	D1	D2	F	E	G	H	S	Net Weight (Kg)
			a	b	a	b	B	C	D1	D2	F	E	G	H	S	a	b
TG0.5	0.5	0.8	64-152	82-203	267	317	192	175	Φ78	Φ57	1.5-3	23	37	95	25	8.4	8.7
TG1	1.0	0.9	64-203	102-305	327	427	213	191	Φ84	Φ60		24	38	107	21	10.8	11.5
TG2	2.0	1.0	88-203	102-305	351	451	255	233	Φ102	Φ75		29	45	128	29	16	17
TG3	3.0	1.2	102-203	102-305	364	464	320	282	Φ120	Φ90		36	65	153	22	23.5	24.8
TG5	5.0	1.3	114-203	108-305	398	474	380	343	Φ141	Φ110		45	75	218	31	37.5	39. 3
TG10	10.0	1.7	125-203	117-305	412	475	454	477	Φ189	Φ150		70	110	262	32	92	95
TG20	20.0	3.5	125-203	117-305	453	553	550	567	Φ225	Φ168		76	115	315	40	180.3	184.3
TG30	30.0	6	125-203	117-305	463	563	630	645	Φ255	Φ196		90	130	354	39	252	261
