Trolley

Home > Products > Trolley

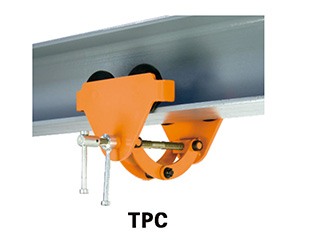

TPC TYPE PLAIN TROLLEY

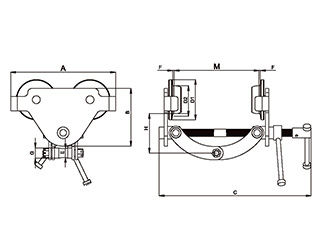

Model	Capacity (tons)	Min. Curve Radius (m)	Beam Flange Width(mm)	Dimensions(mm)									Net Weight (kg)
Model	Capacity (tons)	Min. Curve Radius (m)	M	A	B	C	D1	D2	F	E	G	H	Net Weight (kg)
TGC-0.5	0.5	0.8	64-210	214	142	373	Φ78	Φ57	1.5-3	Φ21.5	Φ25	105-161	9.7
TGC-1	1.0	0.9	64-210	252	162	373	Φ96	Φ67		Φ21.5	Φ25	95-155	12.8
TGC-2	2.0	1.0	76-210	281	180	373	Φ109.6	Φ80		Φ21.5	Φ25	120-177	16.4
TGC-3	3.0	1.2	76-210	328	204	409	Φ129.3	Φ92		Φ26	Φ32	148-193	25.6
TGC-5	5.0	1.3	114-210	380	239	409	Φ143	Φ109		Φ26	Φ32	196-229	31

Pre：TGC TYPE GEARED TROLLEY
Next：TG TYPE GEARED TROLLEY
