Horizontal clamps

Home > Products > Horizontal clamps

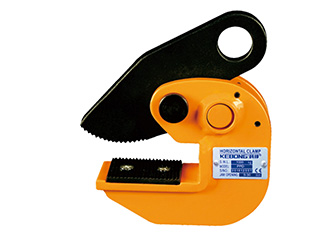

PPD HORIZONTAL PLATE CLAMP

Working load limit (WLL)0.8-10T

◆Suitable for lifting and transport of steel plates,construction and profiled bar in horizontal position.

◆Manufactured from high quality carbon steel.

◆Avoid snatch or shock loading.

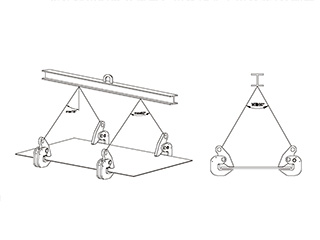

◆The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.In lifting operations the clamps can be used in pairs or multiples.

◆The screw jaw of the body can be changed,also have a safety button.

Model	WLL(tons)	Jaw Opening(mm)	Weight (kg)
PPD0.8	0.8	0-25	2.3
PPD1	1.0	0-30	3.4
PPD1.6	1.6	0-30	3.8
PPD2	2.0	0-40	5
PPD3.2	3.2	0-45	5.4
PPD4	4.0	0-50	6.1
PPD5	5.0	0-55	7
PPD6	6.0	0-65	9.8
PPD6(B)	6.0	0-130	21
PPD8	8.0	0-100	23.5
PPD10	10.0	0-125	30.6
