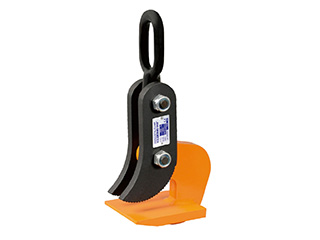

YCH HORIZONTAL LIFTING CLAMP

Working load limit (WLL)1-10T

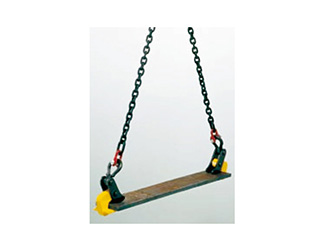

◆The YCH horizontal lifting clamp consists of two clamps with a two-legged chain system.

◆It is especially suited for the transport of single plate with a minimum thickness of approx. 5 mm as well as for plate bundles.

◆The two-legged version is appropriate for small plates.For extra large or long plates, it is recommended to use two of the two-legged lifting clamps in conjunction with a spreader beam.

◆In the standard version,th e lifting clamp is suitable for plates up to 1500 mm width with a top angle of the chain up to a max. of 90°.

◆Clamps with Ionger chains for larger plate widths are available upon request.The working load limit (WLL) applies to a pair of lifting clamps.

◆Single clamps are also available.

Model	WLL (tons)	Jaw Opening (mm)	Weight (kg)
YCH1	1.0	0-50	4
YCH2	2.0	5-32	5.5
YCH4	4.0	5-50	8.5
YCH6	6.0	5-75	23
YCH8	8.0	5-75	26.5
YCH10	10.0	5-100	46
YCH10	10.0	50-150	54
